DS712

$99.00

Outdoor cabinet smart lock Optical distribution box cabinet lock Industrial equipment lock Water conservancy construction smart lock Smart cabinet
RS485/ Bluetooth/door magnetic interface/mechanical lock core (full function)

SKU: DS712 分类:

Description

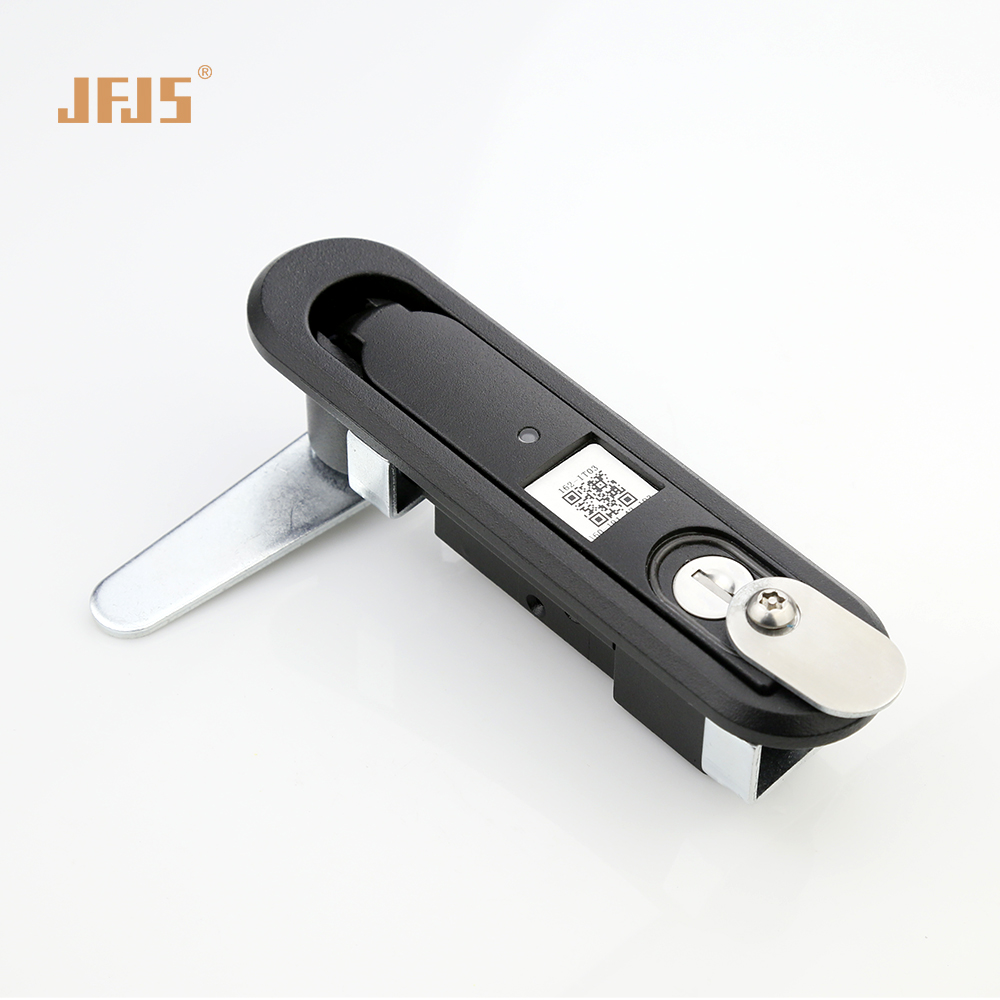

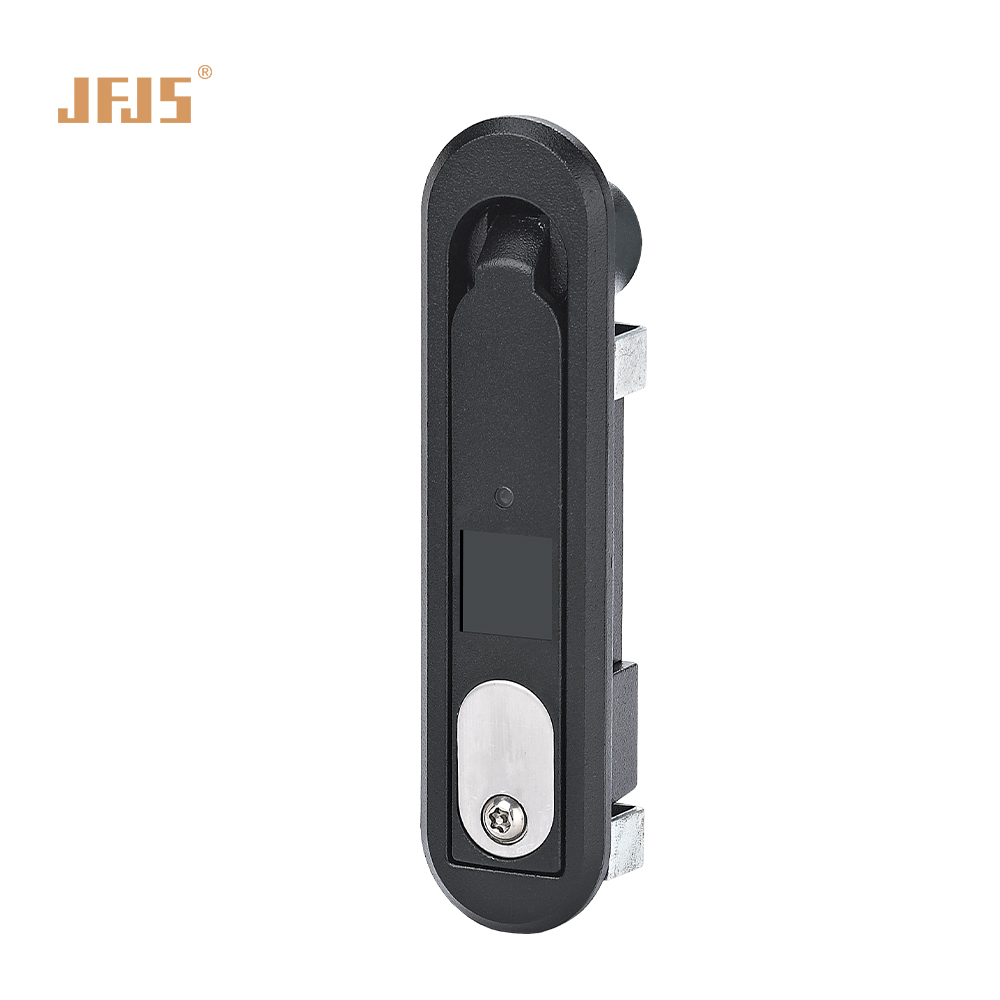

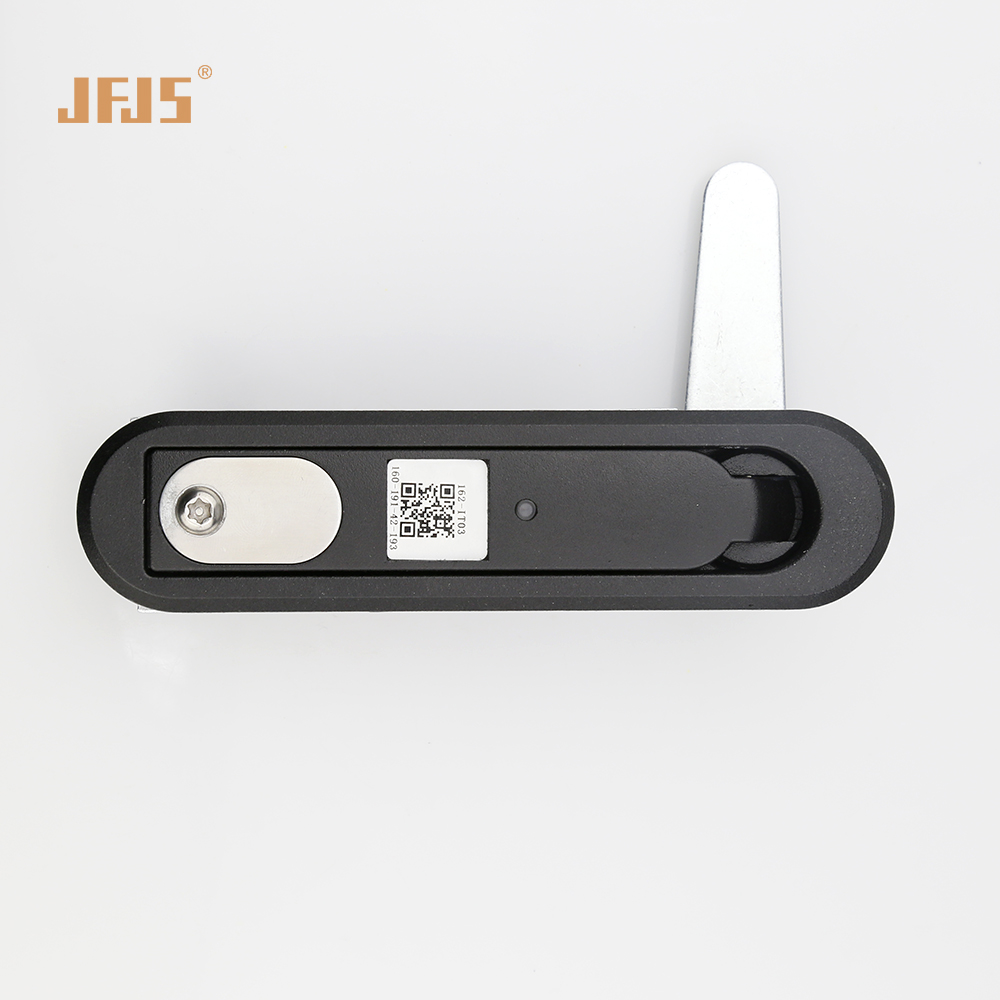

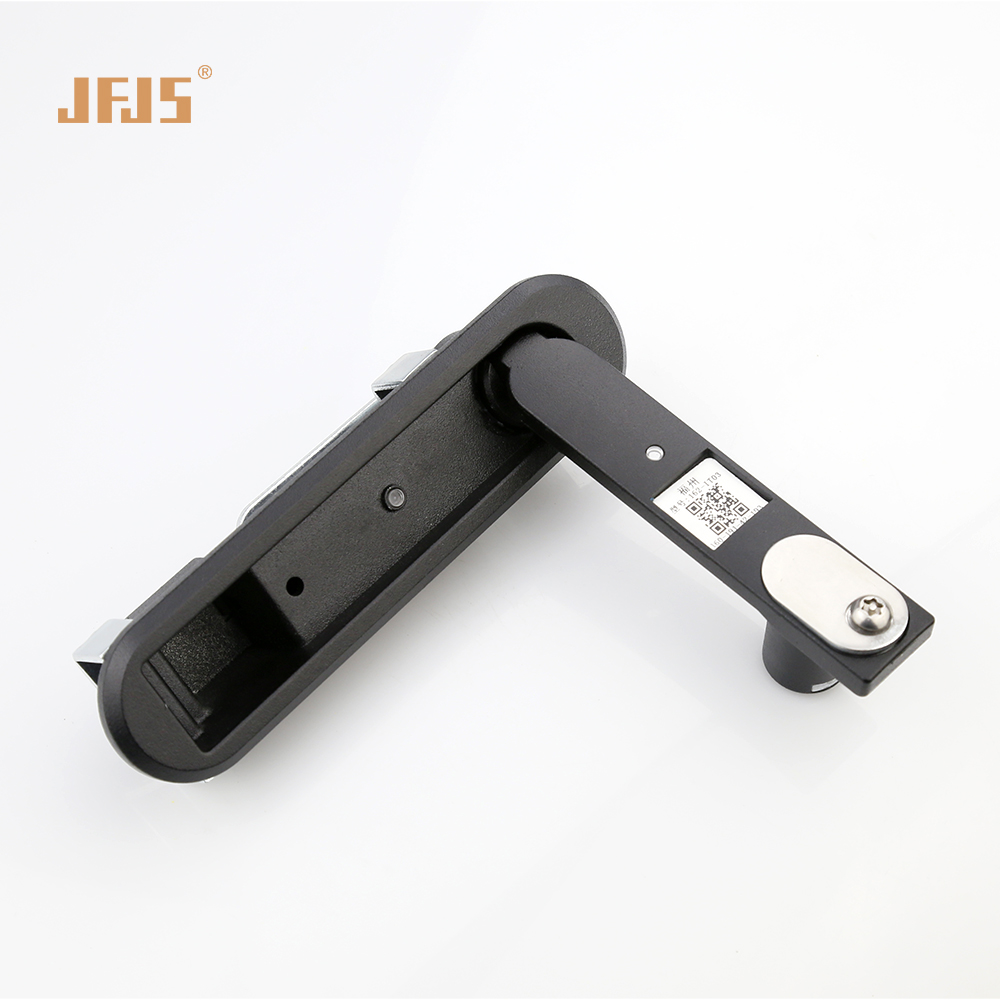

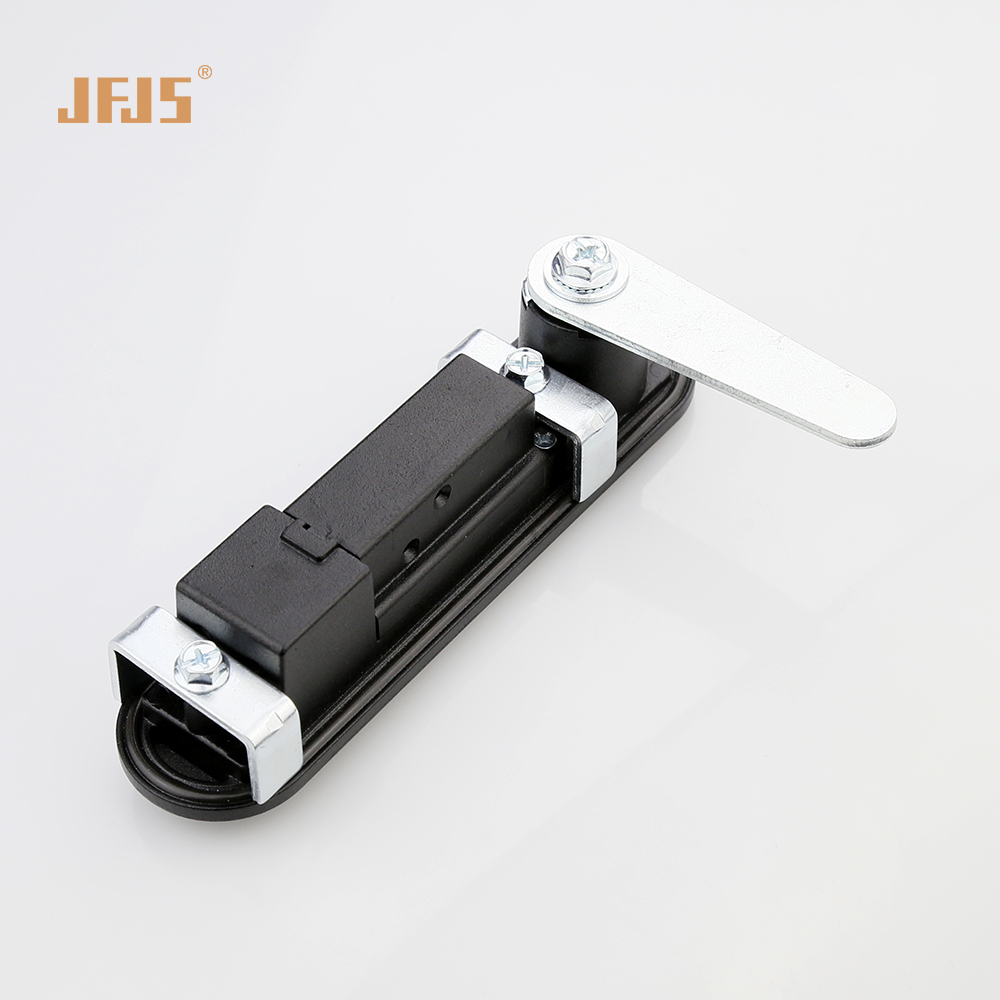

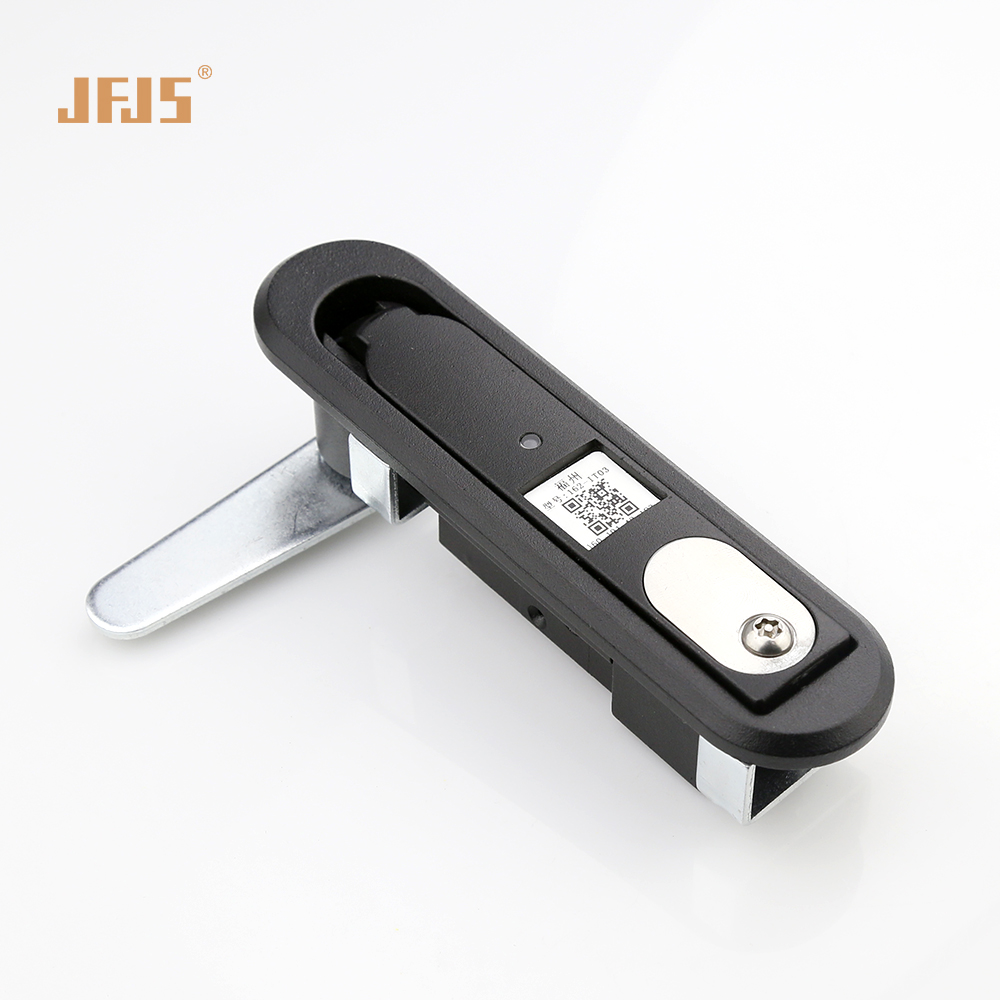

DS712 is a smart cabinet lock developed. The lock shell is made entirely of zinc alloy and has an IP65 waterproof rating, making it suitable for both indoor and outdoor use.

The product features include RS485 remote communication, Bluetooth, scanning code, and multiple unlocking methods. Bluetooth scanning background monitoring management, etc., monitor the door lock status anytime and anywhere through a smartphone APP or remote control device for intelligent management. With advanced encryption technology to ensure the security of lock data, it integrates multiple functions to achieve remote control, Bluetooth scanning personnel management, background monitoring, etc.

In emergency situations, unlocking can be done either mechanically or electronically as needed, and you can choose either. The main difference between the two lies in the management of locksmith personnel and equipment as well as data recording. This electronic lock is widely used in smart city applications such as outdoor cabinets, smart lamp posts, integrated cabinets, unmanned vending machines, smart wide-angle optical boxes, and public security boxes.

Application Scenarios : This electronic lock is widely used in smart city applications such as outdoor cabinets, smart lamp posts, integrated cabinets, unmanned vending machines, smart wide-angle optical distribution boxes, and public security boxes.

Notes: You can choose either an electronic lock or a mechanical lock

YouTube Link:

Product Specification:

Additional information

Form factor

163*40*40mm

Rated voltage

DC 12V±10%

Power consumption

≤3.6W

Rated current

≤0.25A

Operating temperature

-30 to 70 ° C

Humidity

10 to 90 percent

Communication interface

RS485, IO level control

Lock core

Optional (mechanical/electronic lock core)

Control wire

Standard length 400mm length customizable

IP protection

IP65

Standard attachment

F1001; F3001

Optional accessories

F1009; F1002; A2209; F4 door magnet series; F1 Lock plate series
