DS864

$99.00

Grid integrated cabinet lock, Power smart cabinet lock, outdoor waterproof and rainproof interlock, outdoor integrated cabinet
RS485/IC card/Bluetooth/door magnetic interface/mechanical lock core (full function)

SKU: DS864 分类:

Description

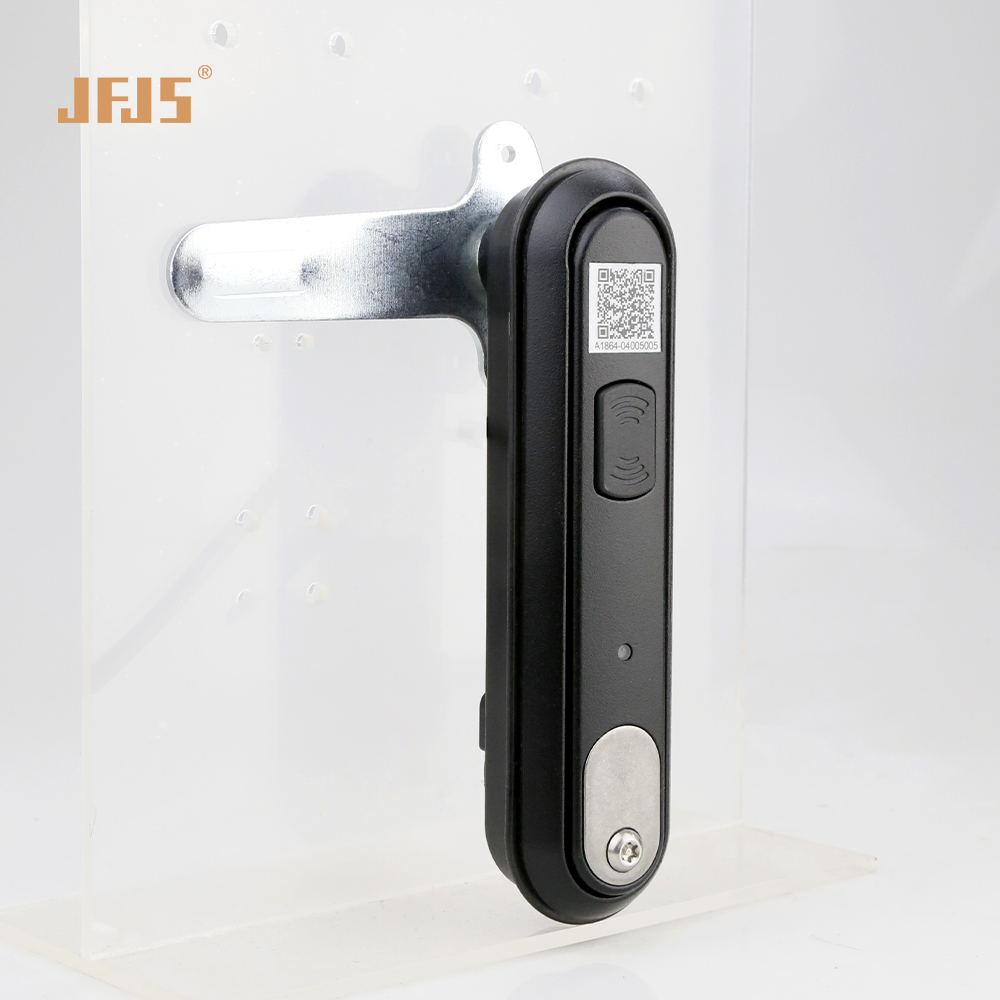

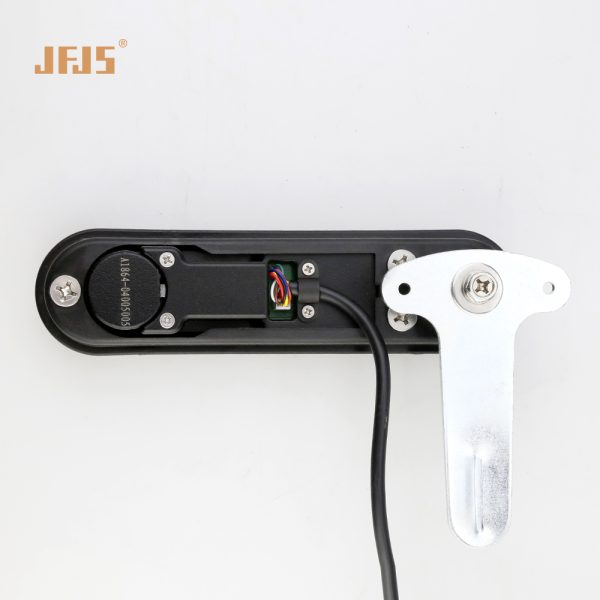

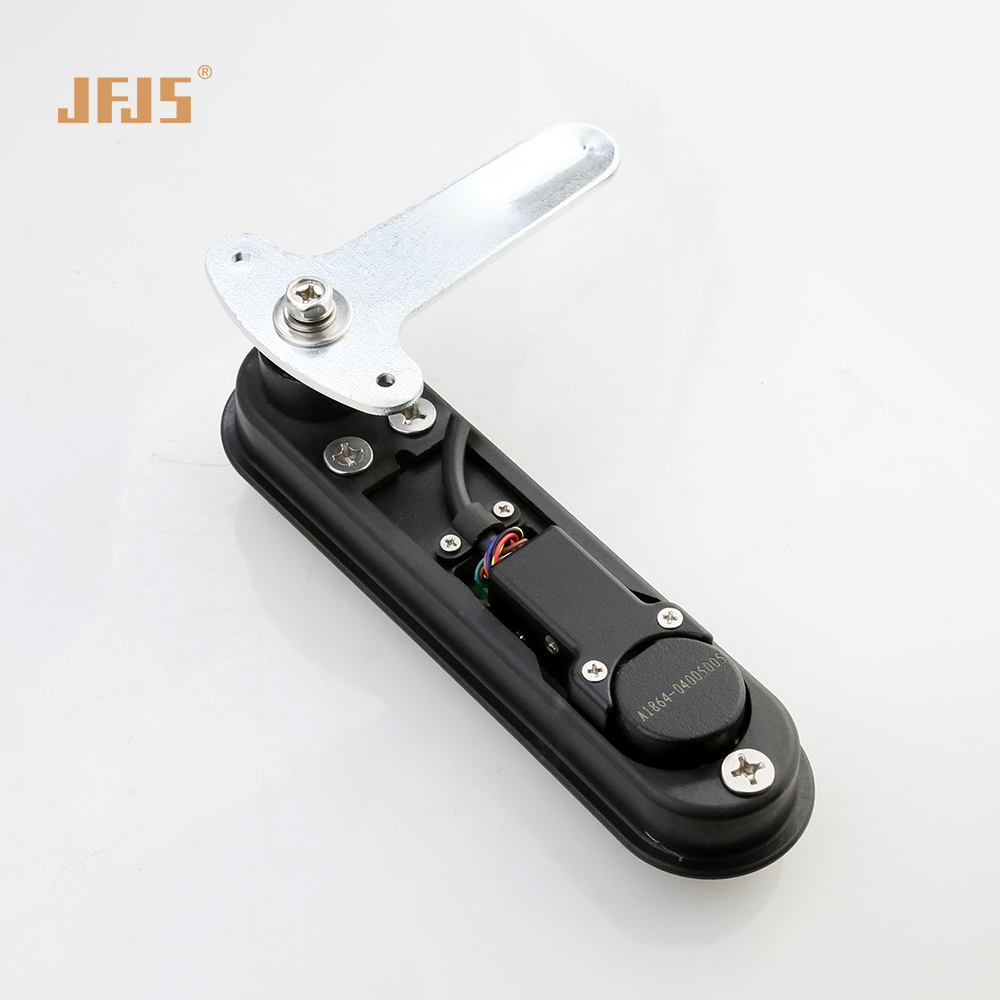

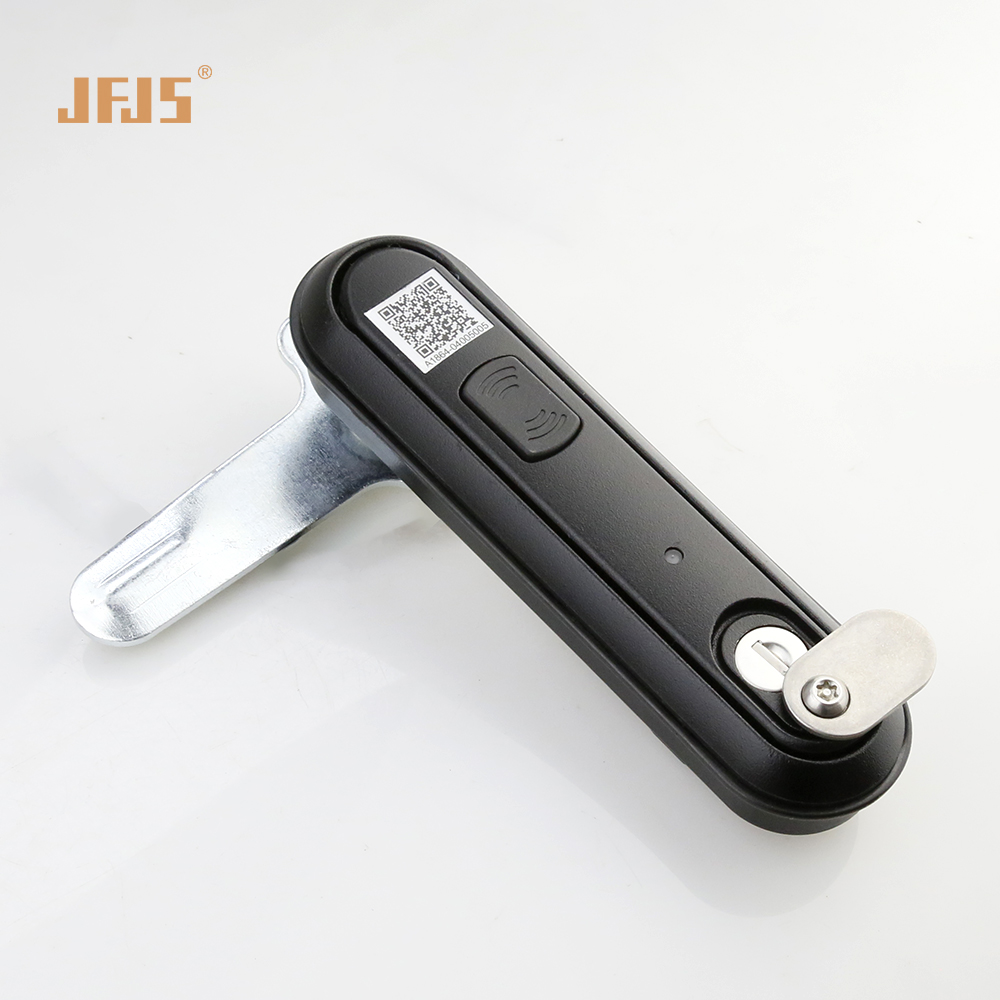

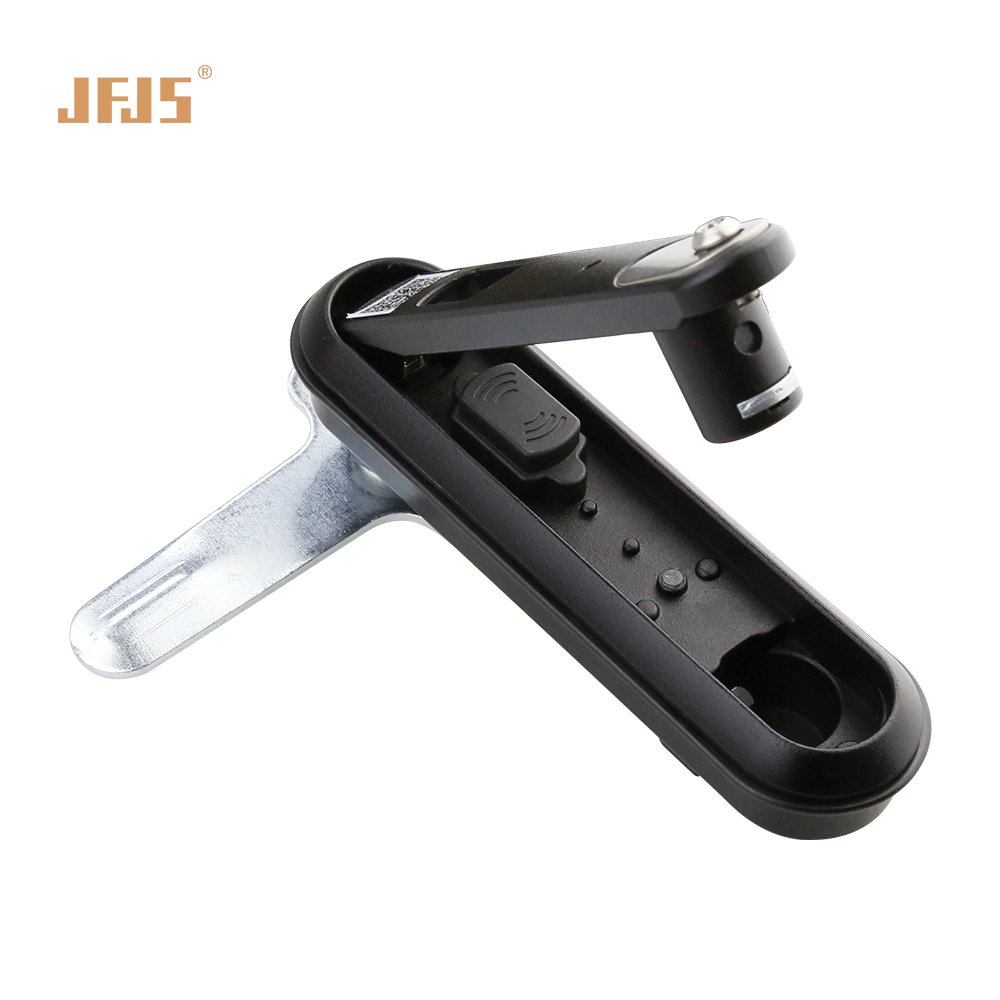

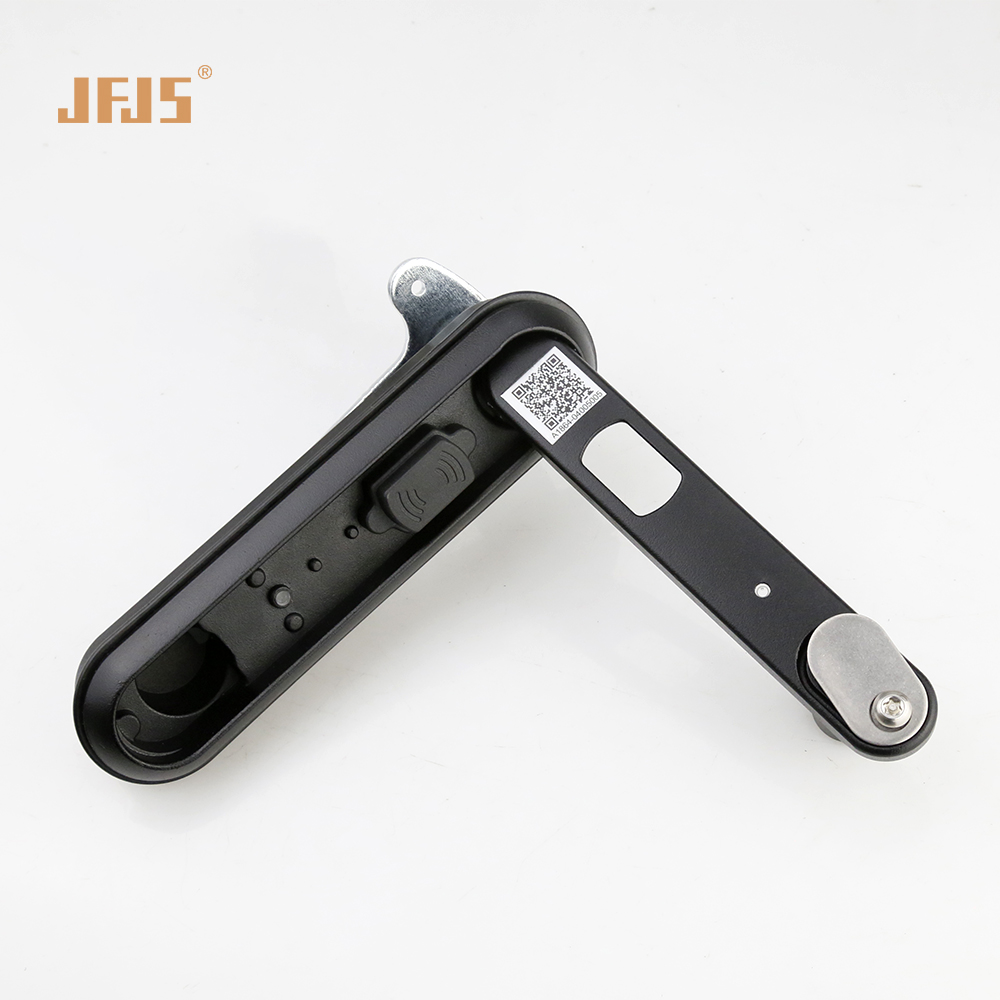

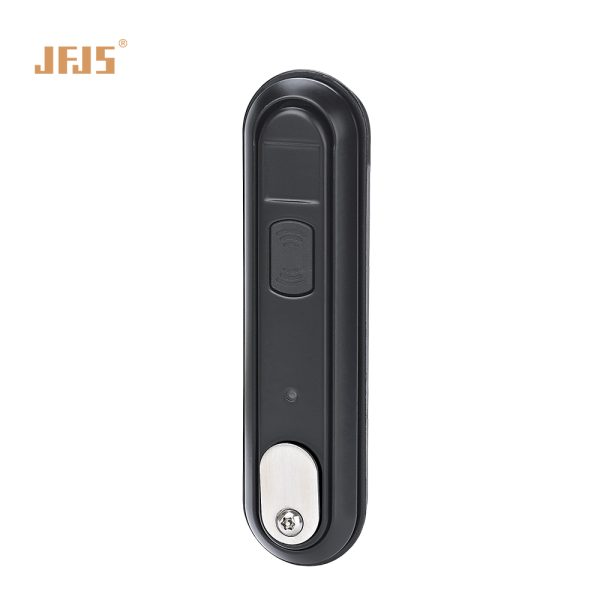

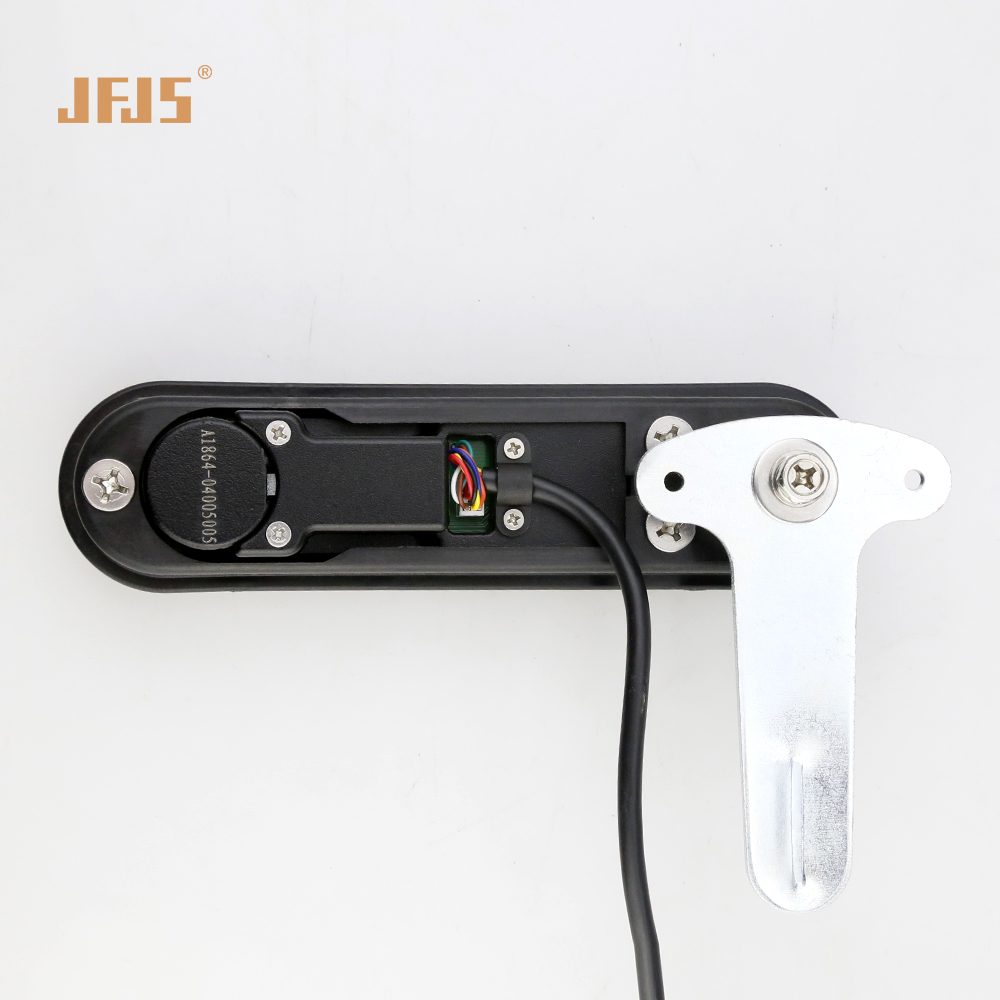

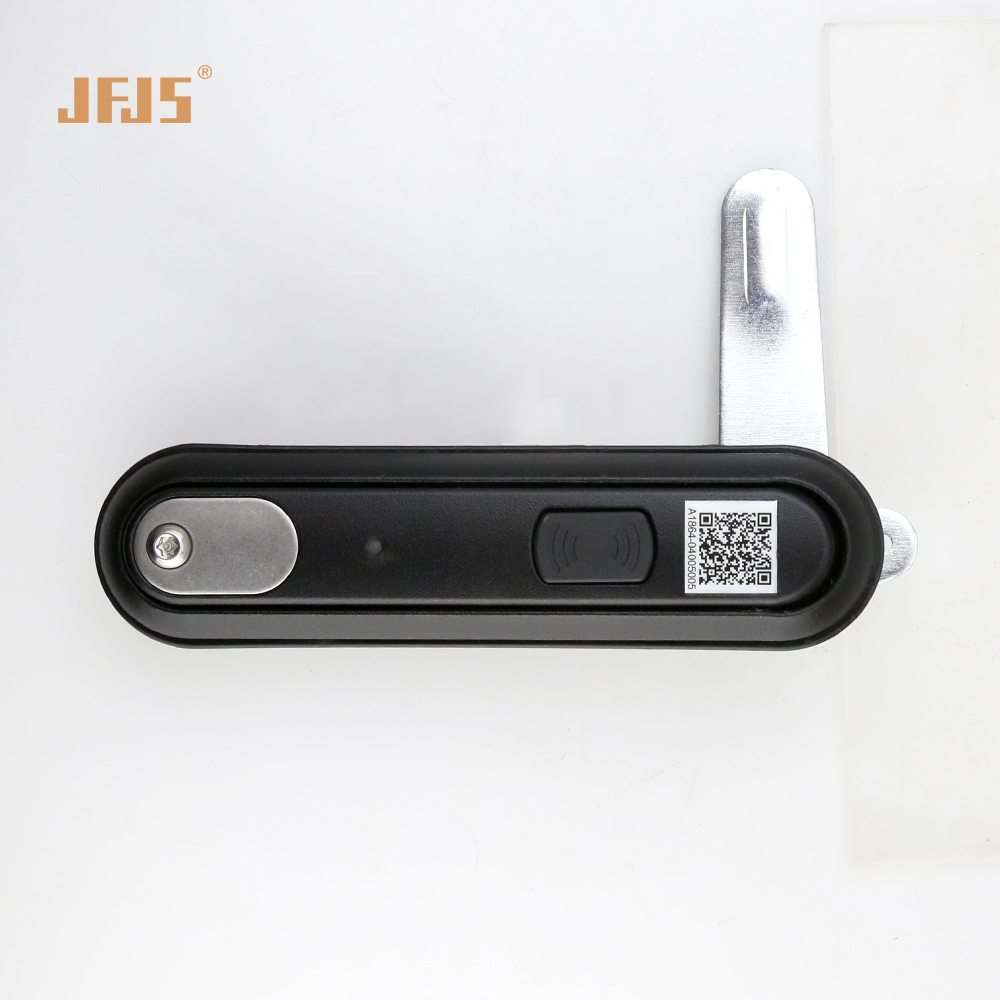

DS864 is a smart cabinet lock developed. The lock shell is made entirely of zinc alloy and has an IP65 water resistance rating. It can be used both indoors and outdoors. In addition, the lock has passed multiple national quality inspection reports including the Ministry of Public Security safety inspection.

The product features RS485 remote communication, Bluetooth, scanning code, card swiping and other unlocking methods. Bluetooth scanning for background monitoring and management, through a smartphone APP or remote control device, to monitor the lock status anytime, anywhere and achieve intelligent management. With advanced encryption technology to ensure the security of lock data, it integrates multiple functions to achieve remote control, Bluetooth scanning personnel management, background monitoring, etc.

In emergency situations, unlocking can be done either mechanically or electronically as needed, and you can choose either. The main difference between the two lies in the management of locksmith personnel and equipment as well as data recording. This electronic lock is widely used in smart city applications such as outdoor cabinets, smart JP cabinets, smart lamp posts, integrated cabinets, unmanned vending machines, etc.

Application Scenarios : This electronic lock is widely used in smart city applications such as outdoor cabinets, smart JP cabinets, smart lamp posts, integrated cabinets, unmanned vending machines, etc.

Notes: You can choose either an electronic lock or a mechanical lock

YouTube Link:

Product Specification:

Additional information

Form factor

170.5*41* 50mm

Rated voltage

DC12V±10%

Power consumption

≤3.6W(25 ° C, 65%RH)

Rated current

≤100mA

Peak current

≤300mA

Operating temperature

-30 to 70 ° C

Operating humidity

5 to 90 percent

Communication interface

RS485NG26, BLE, switch quantity

IC card parameters

Frequency: 13.56MHz; Card type: IC

Lock core

Optional (mechanical/electronic lock core)

Control wire

Standard length 400mm length customizable

Vibration alarm

Customizable

IP protection

IP65

Standard attachment

F1061; F3001

Optional accessories

F1062; A2209; F4 door magnet series; F1 Lock plate series
