DS867

$99.00

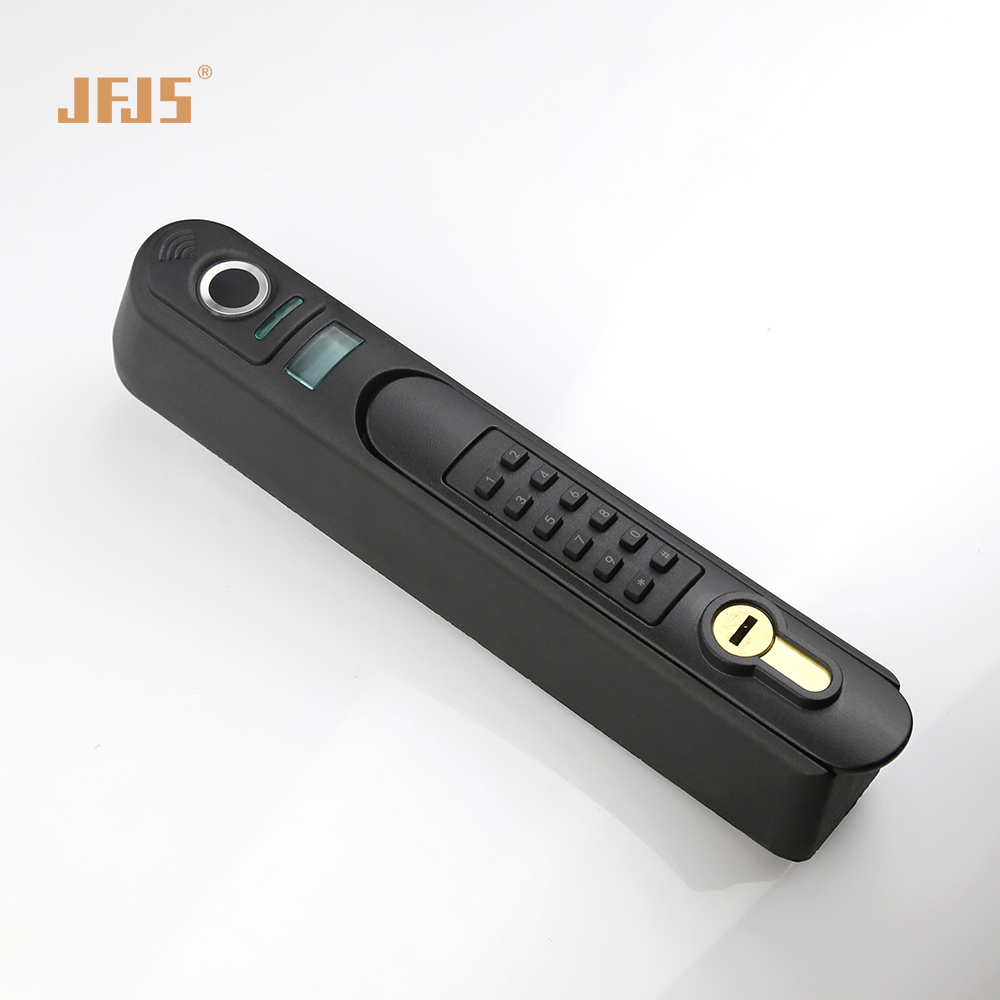

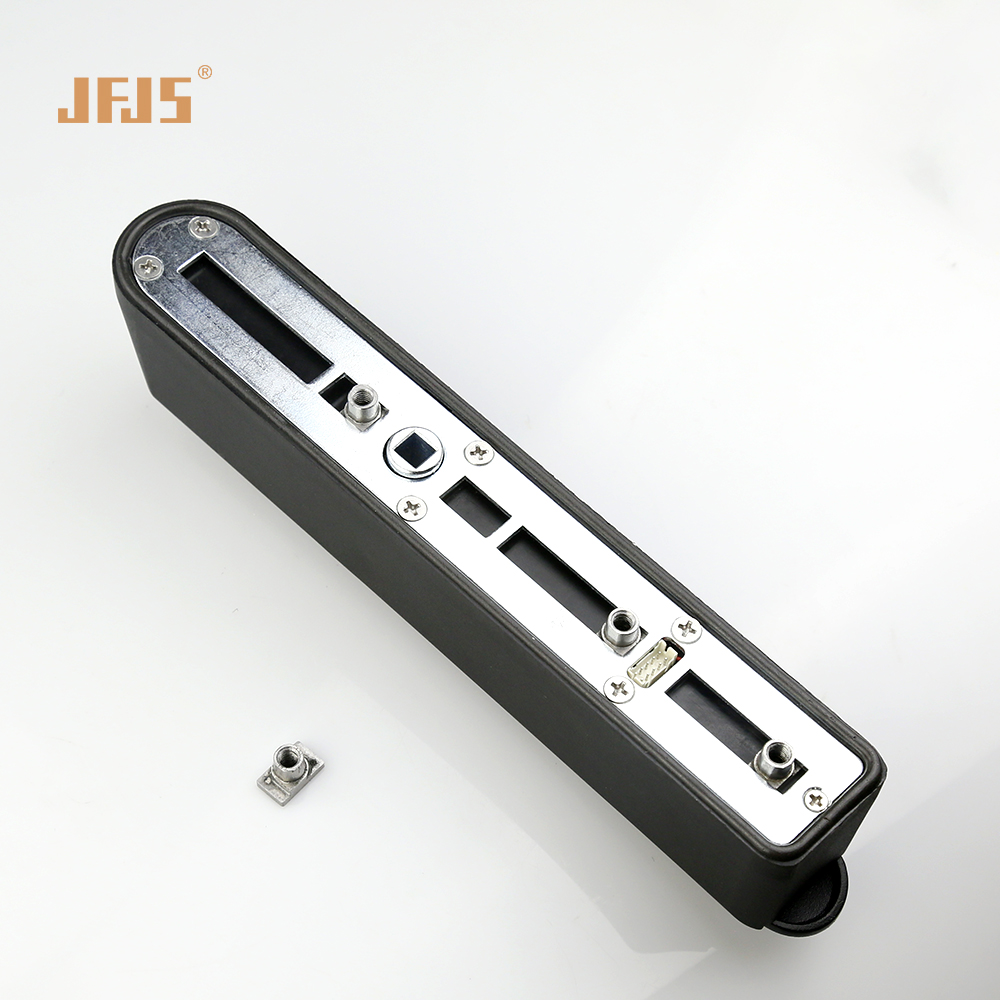

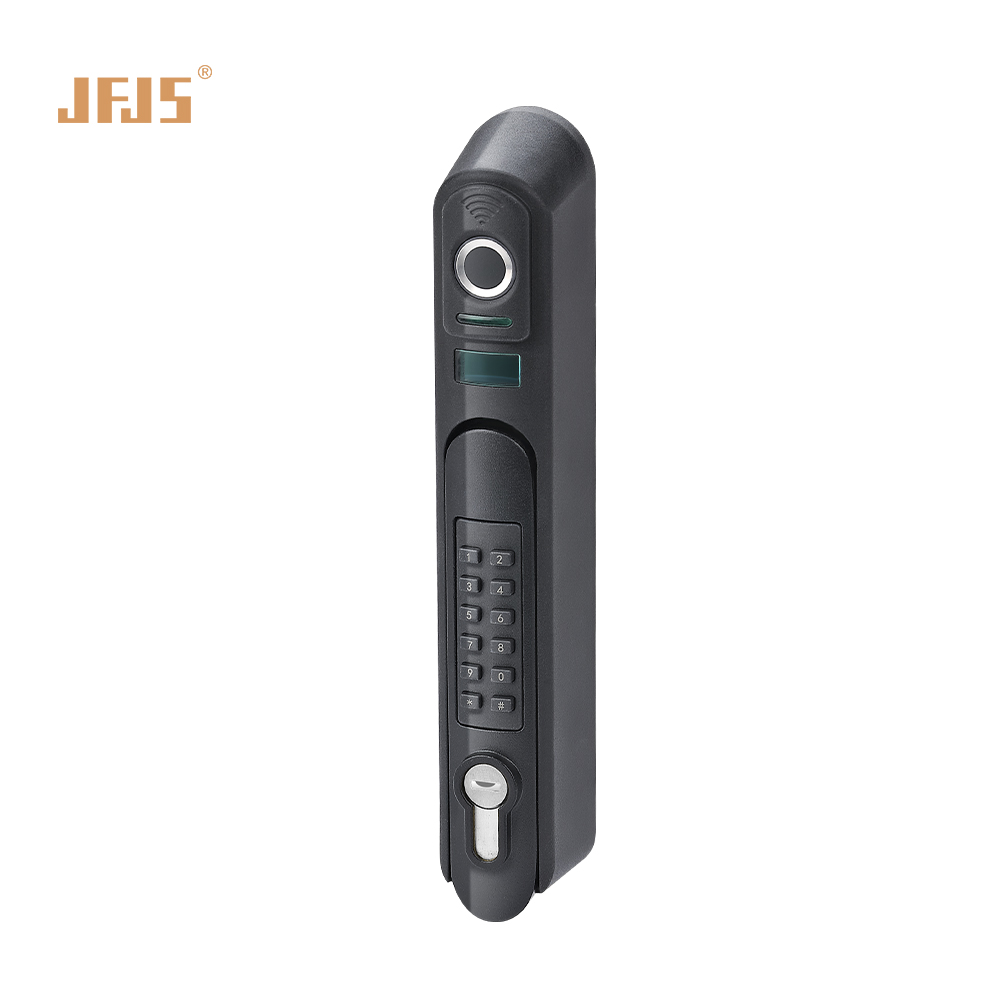

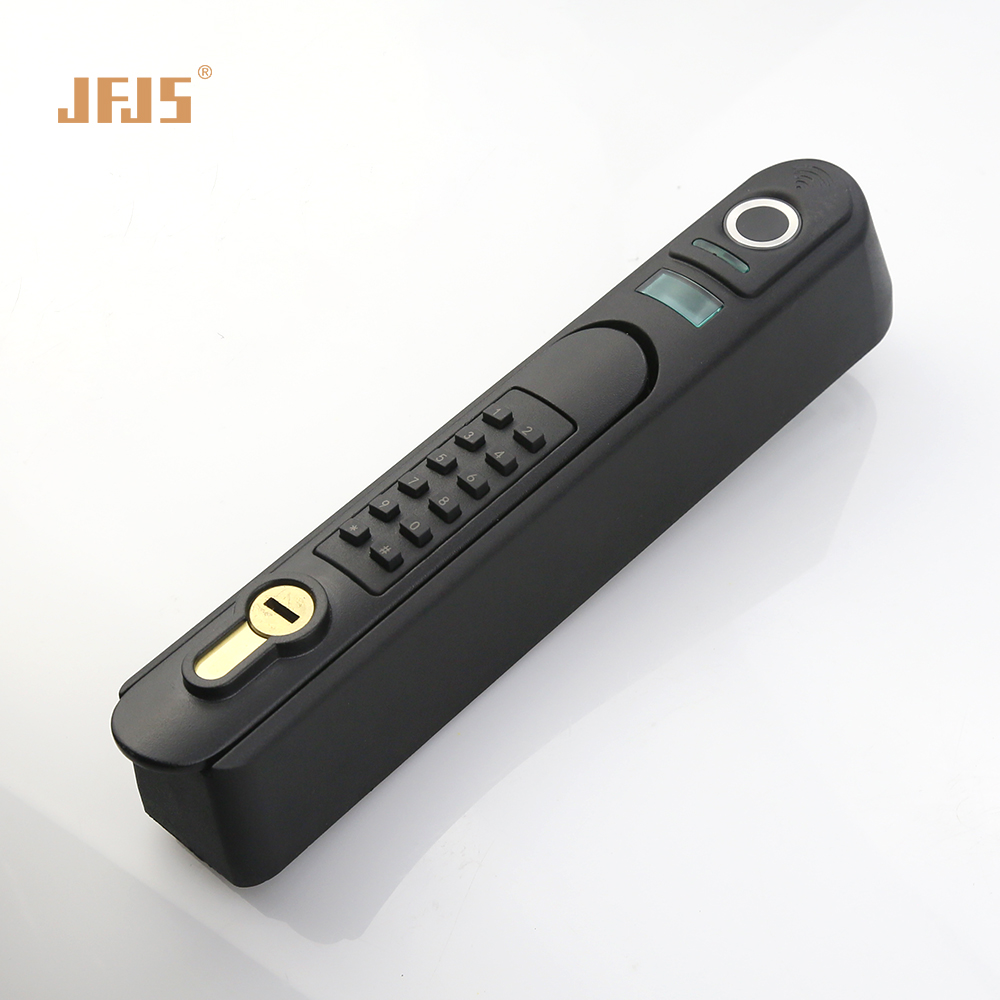

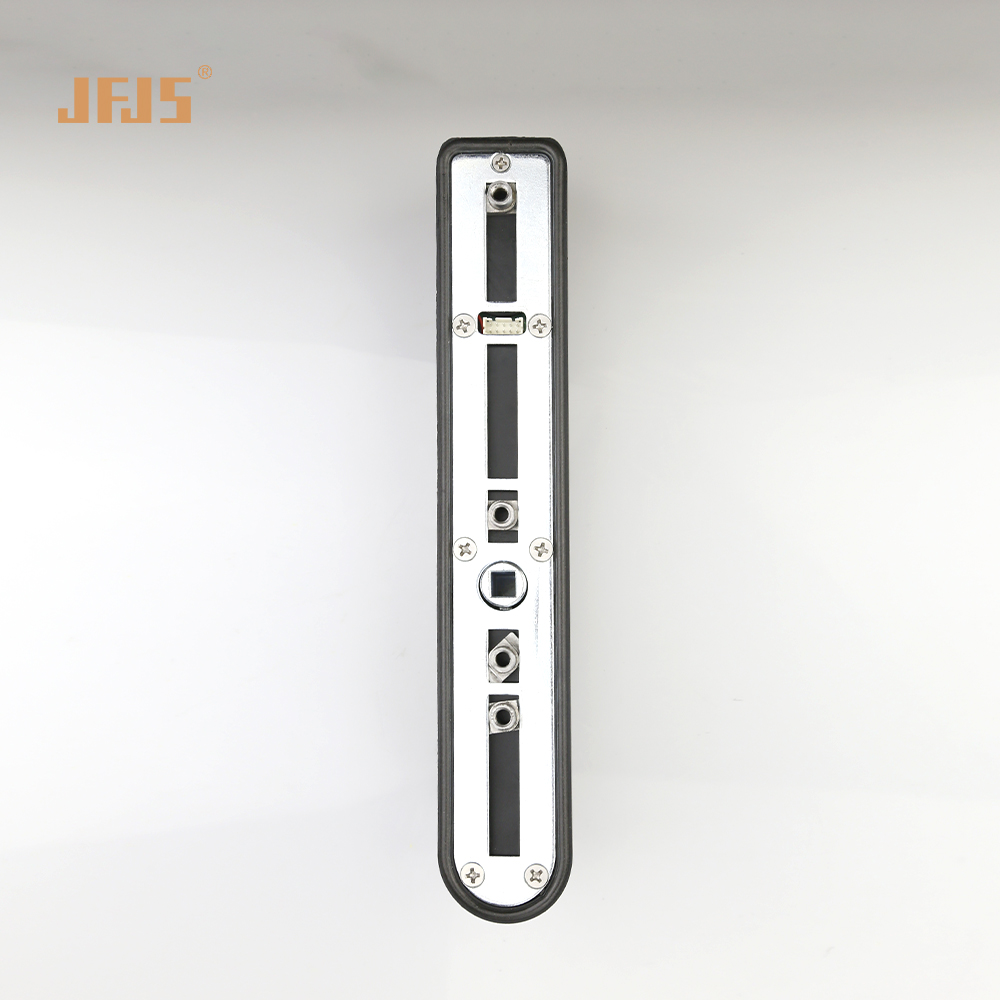

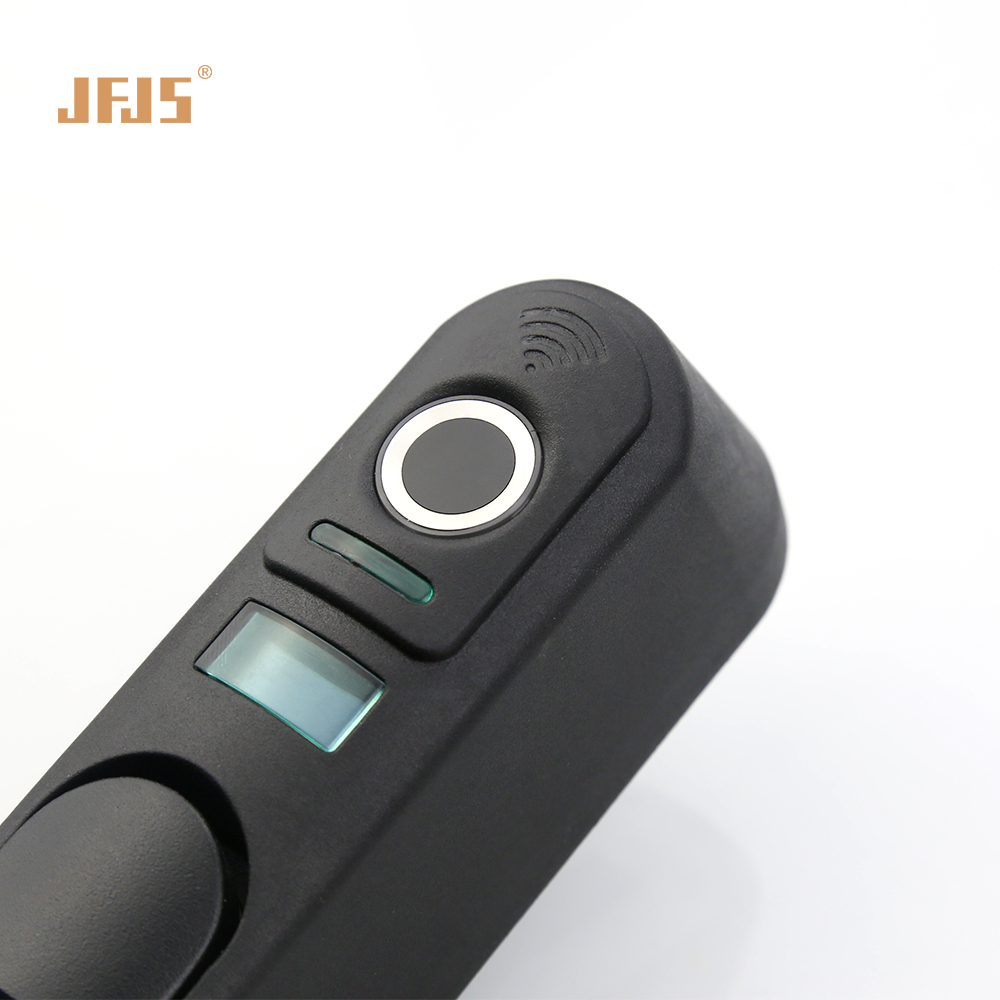

Data center smart lock Data center digital door lock RS485 Fingerprint password Smart cabinet lock
RS485/IC card/Bluetooth/Password/Fingerprint/door magnetic interface/mechanical lock core (full function)

SKU: DS867 分类:

Description

DS867 is a self-developed smart lock specifically designed for IDC data centers. Its casing is made of high-strength PA66 nylon, which not only has extremely high strength and wear resistance, but also good toughness and impact resistance.

The lock body integrates a variety of unlocking methods, including password, fingerprint, card, mechanical key/electronic key, etc., to fully meet the unlocking requirements for different occasions. The DS867 also has management permissions such as identity verification, two-factor verification, and time-slot opening authorization, which can effectively ensure the security of the infrastructure. It can effectively manage the access of personnel to and from the data center to enhance the security of the data center infrastructure. At the same time, it can be seamlessly integrated with access control systems, security systems and other equipment to achieve all-round integrated security management.

Connect the computer room with the cabinet as the management unit, and use a combination of hardware and software to monitor each cabinet unit in the computer room in real time, enabling operation and maintenance personnel to authorize cabinet opening, automatic record saving, automatic work order recording, and alarm event alerts. Support IDC business development through intelligent information management means, improve IDC operation and maintenance efficiency, and ensure IDC service quality.

Application Scenarios : This lock is widely used in various indoor intelligent communication cabinets, IDC data centers and other places that require remote unlocking and real-time monitoring.

Notes: You can choose either an electronic lock or a mechanical lock

YouTube Link:

Product Specification:

Additional information

Form factor

240*38*45mm

Rated voltage

DC 12V±10%

Power consumption

≤3W(25 ° C,65%RH)

Rated current

≤50mA

Peak current

≤250mA Operating temperature: -10 to 65 ° C

Operating humidity

5 to 90 percent

Communication interface

RS485

BLE Number of users

300 groups (300 fingerprints +300 passwords +300 cards)

IC card parameters

Frequency: 13.56MHz; Card type: IC; Fingerprint: Search time ≤1 second

Password

6 bits (with support for dummy password)

Lock core

Optional (mechanical/electronic lock core)

Control wire

Standard length 400mm length customizable
