DS868 (Retrofit)

$99.00

Data center cabinet lock Data center transformation digital door lock Fingerprint password card unlocking Smart lock
RS485/ Card swipe /WIFI/ Bluetooth/Fingerprint/Password/door magnetic interface/power-off mechanical lock core/emergency power supply interface

SKU: DS868 (Retrofit) 分类:

Description

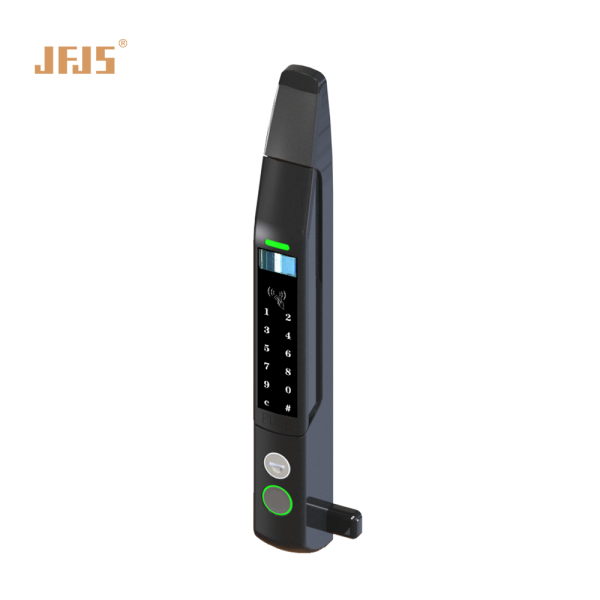

DS868 is an IDC data center smart lock developed and produced independently for the retrofit market.

The lock body integrates multiple unlocking methods, including password, fingerprint, card swiping, mechanical key/electronic key, etc., fully meeting the unlocking requirements for different occasions. The DS868 also has management permissions such as authentication, two-factor authentication and time-slot opening authorization, which can effectively ensure the security of the infrastructure. It can effectively manage the entry and exit of personnel in the data center and enhance the security of the data center infrastructure. At the same time, it can be seamlessly integrated with access control systems, security systems and other equipment to achieve all-round integrated security management.

Connect the computer room with the cabinet as the management unit, and use a combination of hardware and software to monitor each cabinet unit in the computer room in real time, enabling operation and maintenance personnel to authorize cabinet opening, automatic record saving, automatic work order recording, and alarm event alerts. Support IDC business development through intelligent information management means, improve I0C operation and maintenance efficiency, and ensure IDC service quality.

Application Scenarios : It can be used both indoors and outdoors.

Notes: You can choose either an electronic lock or a mechanical lock



Additional information

Form factor

314*36*35mm

Rated voltage

DC 12V±10%

Power consumption

≤3.6W

Rated current

≤160mA

Peak current

≤250mA

Operating temperature

30 to -60 ° C

Operating humidity

5-93%

Communication interface

RS485, BLE

Number of users

300 groups (300 fingerprints +300 passwords +300 cards)

IC card parameters

Frequency: 13.56MHz; Card type: IC;

Fingerprint

Search time ≤1 second

Password

6 digits (supports dummy password function)

Lock core

Optional (mechanical/electronic lock core)

Control wire

Standard length 400mm length customizable
