DS888

$99.00

State Grid Power Box transformer smart iot lock Open and close iot lock Large cabinet chassis Active and passive smart
RS485/ Card swipe/Bluetooth/door magnetic interface/mechanical lock core

SKU: DS888 分类:

Description

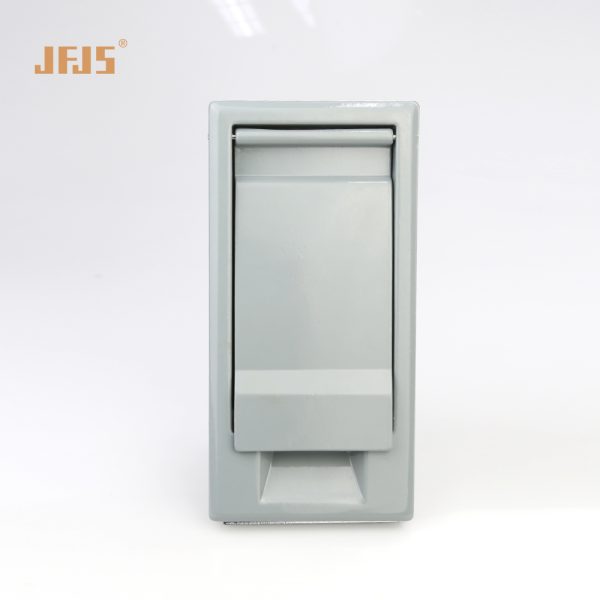

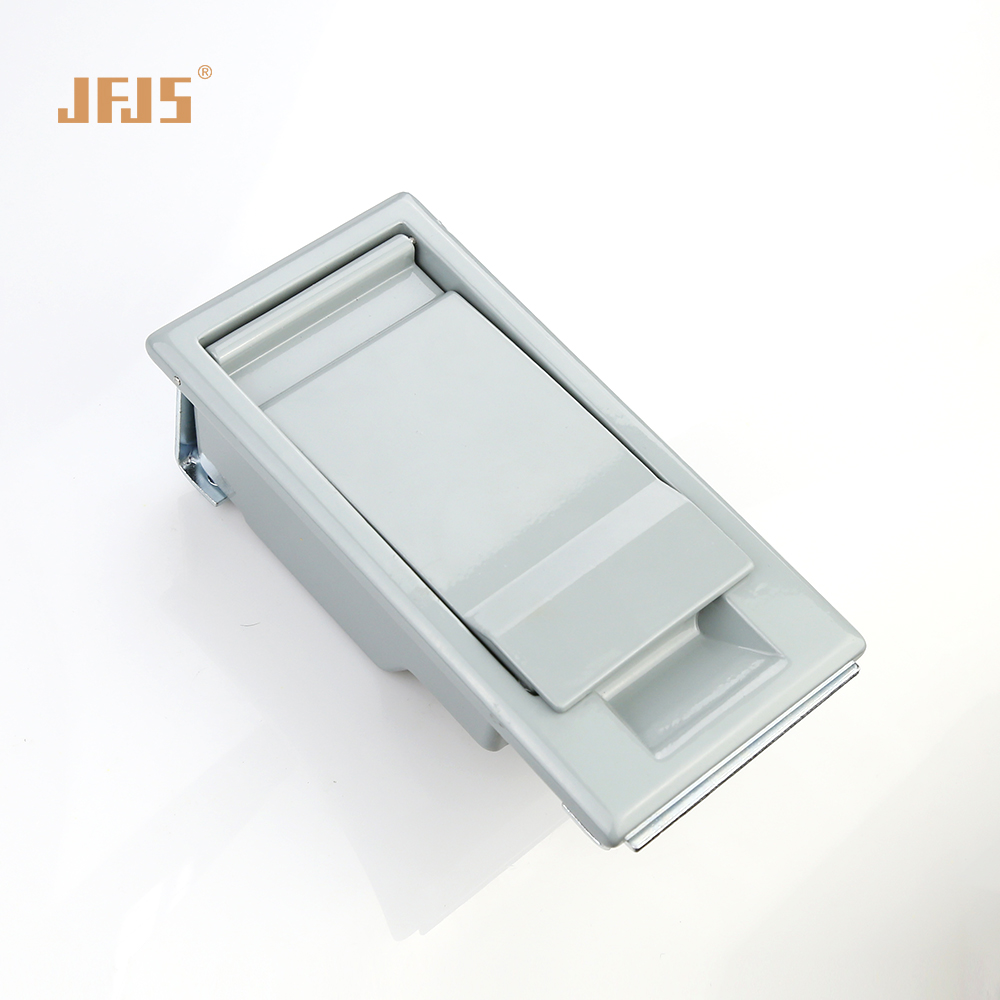

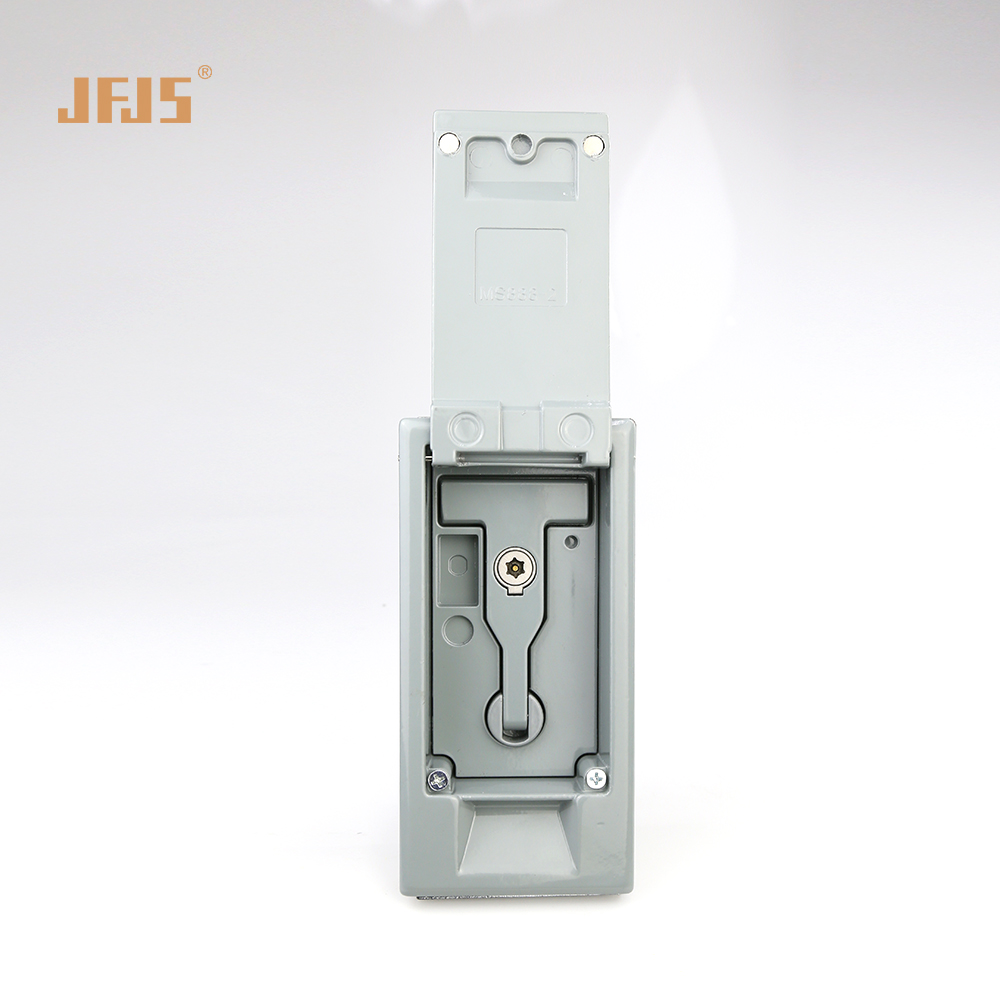

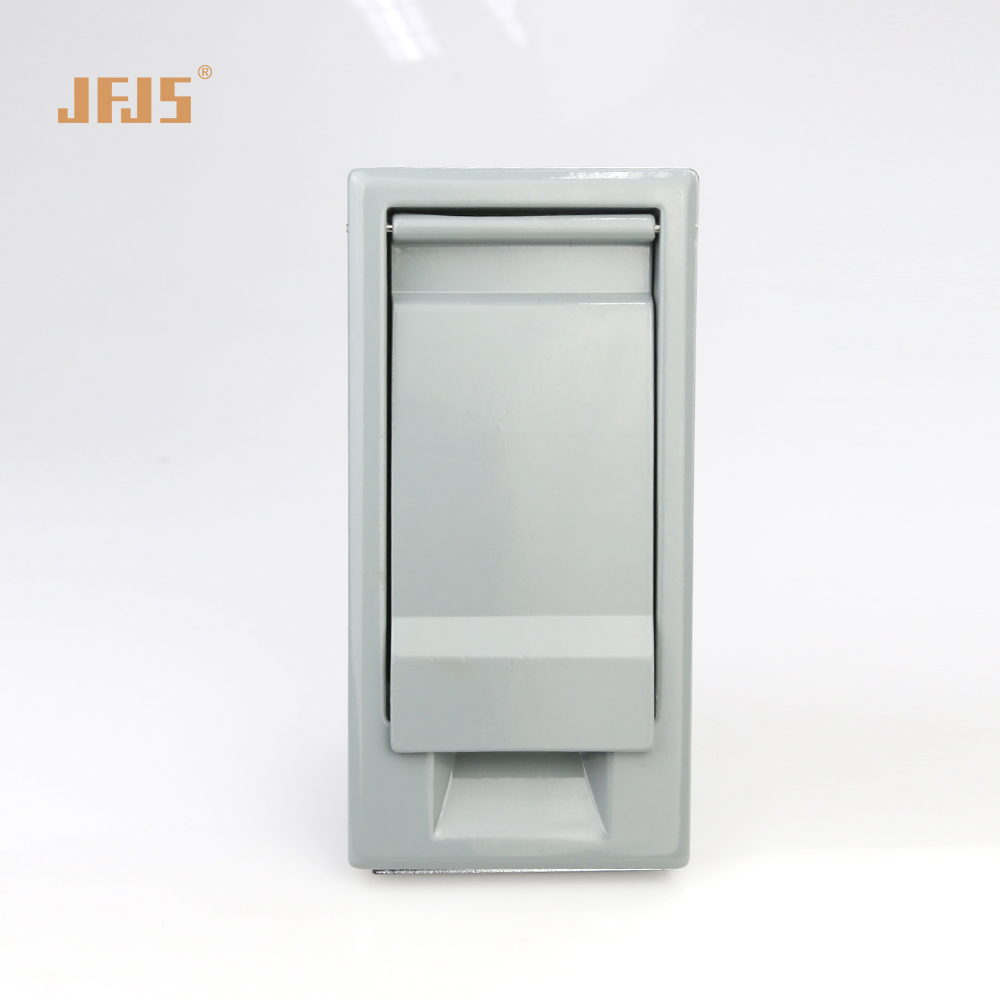

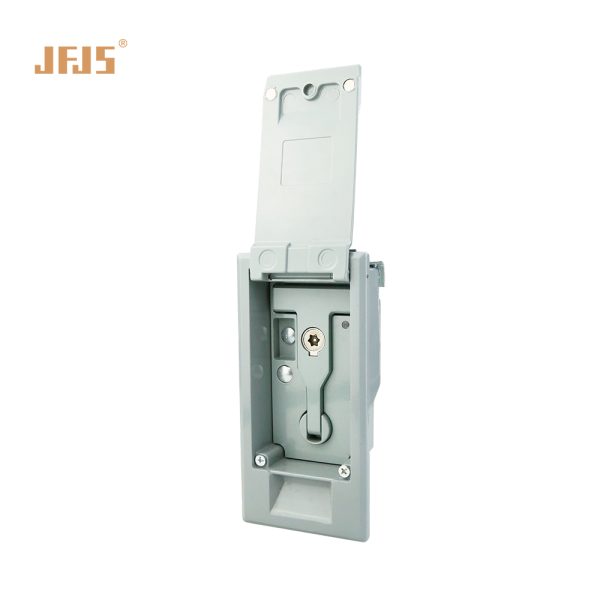

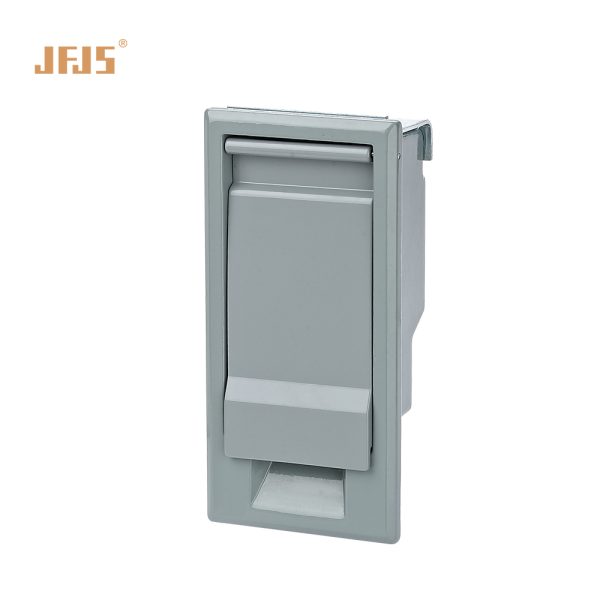

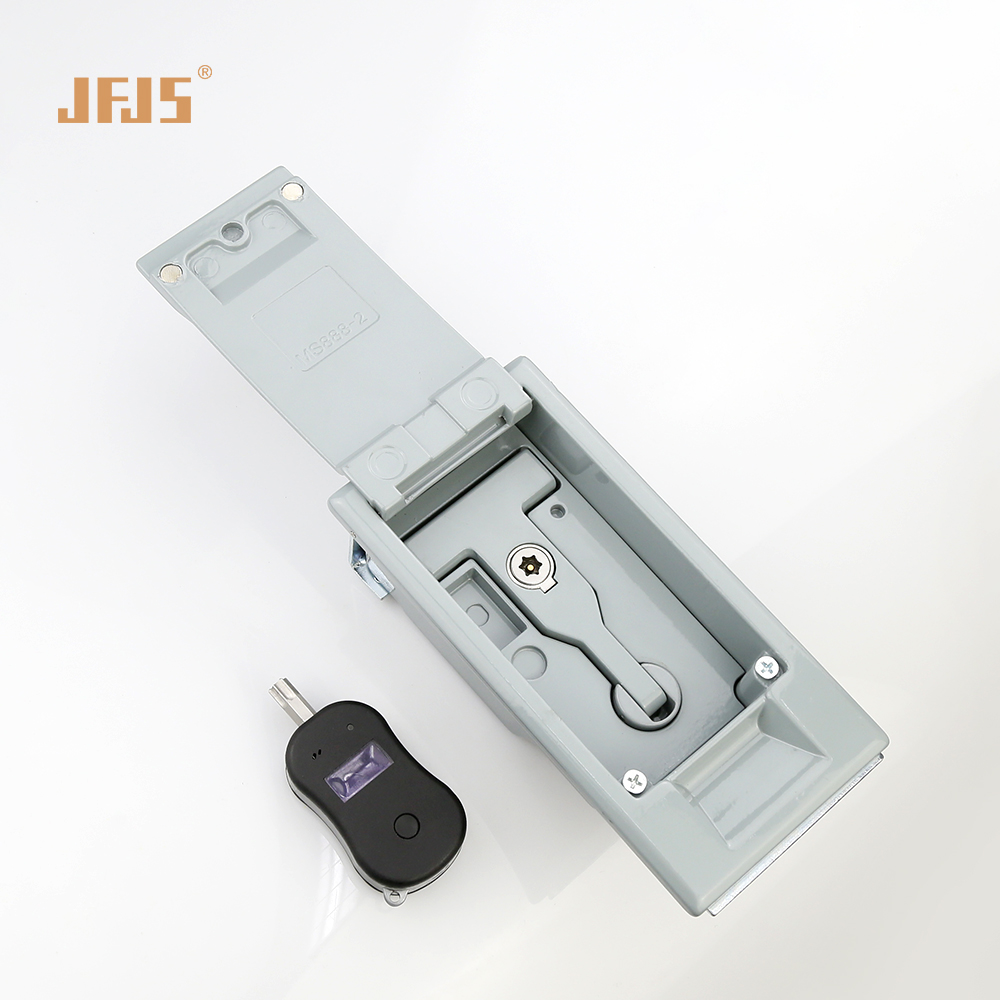

DS888 is a smart cabinet lock developed. The lock shell is made entirely of aluminium alloy and has an IP65 waterproof rating, making it suitable for both indoor and outdoor use.
The product features a variety of unlocking methods including RS485 remote communication, Bluetooth, scanning code, card swiping, etc. Bluetooth scanning for background monitoring and management, through a smartphone APP or remote control device, to monitor the lock status anytime, anywhere and achieve intelligent management. With advanced encryption technology to ensure the security of lock data, it integrates multiple functions to achieve remote control, Bluetooth scanning personnel management, background monitoring, etc.
In emergency situations, unlocking can be done either mechanically or electronically as needed, and you can choose either. The main difference between the two lies in the management of locksmith personnel and equipment as well as data recording.
This electronic lock is widely used in applications such as transformer boxes, substations, and outdoor smart cabinets.

Application Scenarios : This electronic lock is widely used in applications such as transformer boxes, substations, outdoor smart cabinets, etc.

Notes: You can choose either an electronic lock or a mechanical lock

YouTube Link:

Product Specification:

Additional information

Form factor

177.5*86.5*75mm

Rated voltage

DC12V±10%

Power consumption

≤3.6W(25 ° C, 65%RH)

Rated current

≤100mA

Peak current

≤300mA

Operating temperature

-30 to 70 ° C

Operating humidity

5 to 90 percent

Communication interface

RS485; BLE; Switch quantity

IC card parameters

Frequency: 13.56MHz; Card type: IC

Lock core

Optional (mechanical/electronic lock core)

Control wire

Standard length 400mm length customizable

Vibration alarm

Customizable

Protection class

IP67

Standard attachment

F1028; F3003

Optional attachments

A2209; F4 door magnet series; F1 Lock plate series
